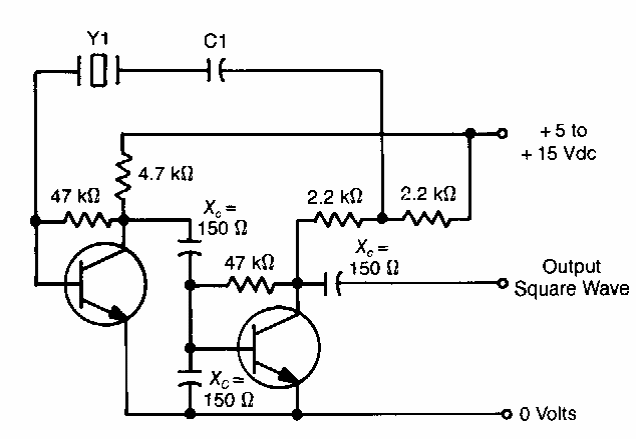

We found this circuit in an old RF documentation. The circuit must employ RF transistors and the frequency is determined by the crystal. The circuit has a rectangular output with 5 V and can be used as a shield.
10 to 80 MHz Oscillator (CB6511E)
