Flash-activated flash (CB6749E)

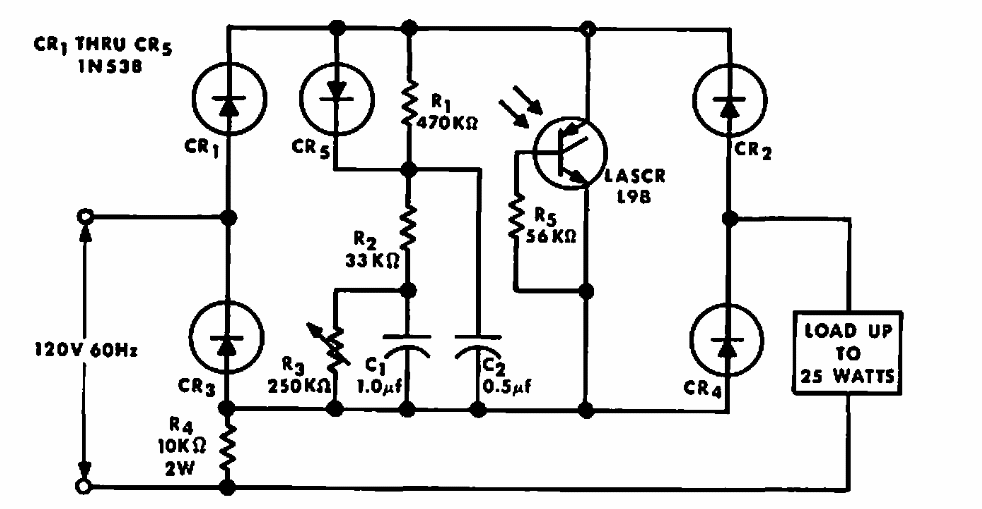

This circuit was suggested by General Electric in 1970 documentation. It makes use of a photo-SCR or LASCR, an uncommon component today.

| Clique na imagem para ampliar |

Three-input majority gate (CB7248E)
This interesting logic circuit was found in a manual of neon lamp applications. | Clique na imagem...
Pulsing Tone Alarm (CB4878E)
This variation of the previous circuit produces a pulsating sound when the sensor is activated. The...
Modulated Power Supply For LASER Pointer (CB1184E)
This circuit allows controlling a LASER pointer with an input logic signal. R has 10 ohm for 3 V...
