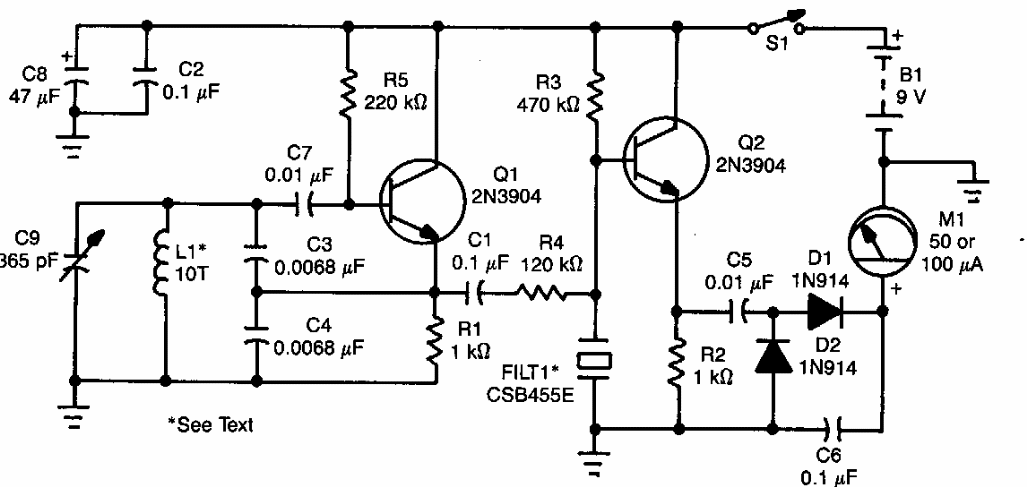

Found on 80's Popular Electronics this circuit operates at 455 kHz. The explorer coil is formed by 10 turns of yarn 26 in a 4 inch shape. The indicator is a microammeter.
| Clique na imagem para ampliar |
Metal Detector (CB6525E)
- Details
- Written by: Newton C. Braga
