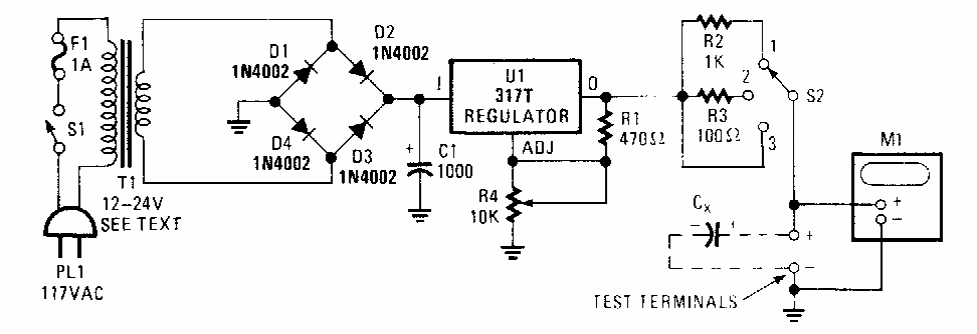

This circuit aims to recover electrolytic capacitors by applying currents higher than normal for a certain time. We found it in a Popular Electronics from the 80s. The current of the transformer is 1 A.
| Clique na imagem para ampliar |
Electrolytic recoverer (CB7074E)
- Details
- Written by: Newton C. Braga
