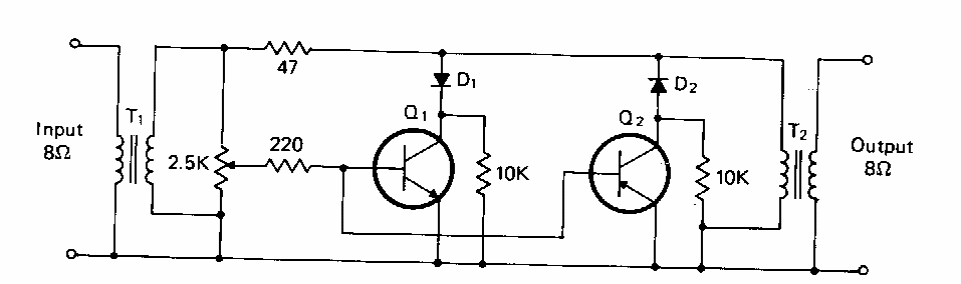

This circuit was found in documentation from the 1980s. It is powered by the audio signal that must be cut. Transformers are the critical components and transistors are 2N2222.
| Clique na imagem para ampliar |
Audio limiter (CB7398E)
