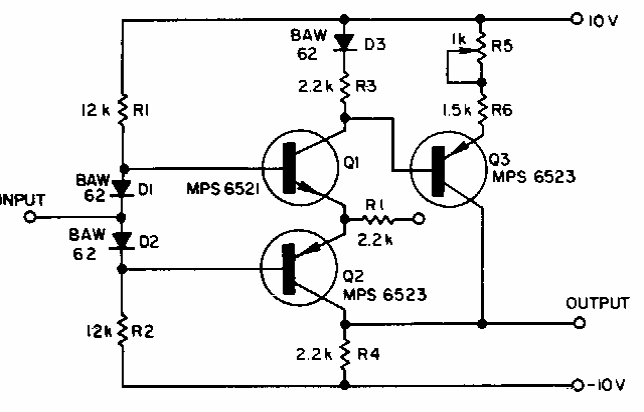

Frequency doubler up to 1 MHz (CB6343E)

Details
Written by: Newton C. Braga



    This circuit uses common components at the time of its publication in the 1980s. The circuit can be made with modern equivalent transistors. The input signal is sinusoidal.
