Shield with triac (CB7052E)

Details
Written by: Newton C. Braga

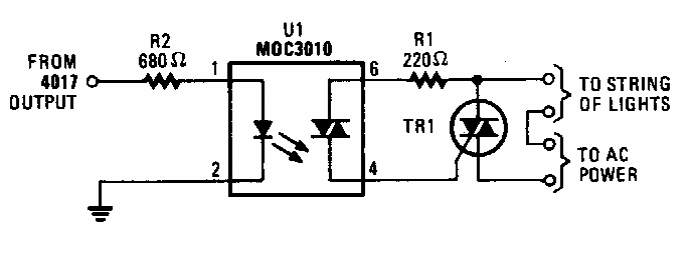

    Originally suggested by Popular Electronics to control Christmas lights, this circuit can perfectly find application as a shield. The value of R2 will be changed according to the microcontroller output.
