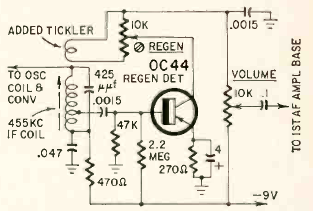

This interesting circuit of a one-transistor receiver was found ina march 1961 Radio Electronics magazine. The output signal must be applied to an external amplifier.
Regenerative superheterodyne (CB23730E)
- Details
- Written by: Newton C. Braga
This interesting circuit of a one-transistor receiver was found ina march 1961 Radio Electronics magazine. The output signal must be applied to an external amplifier.
