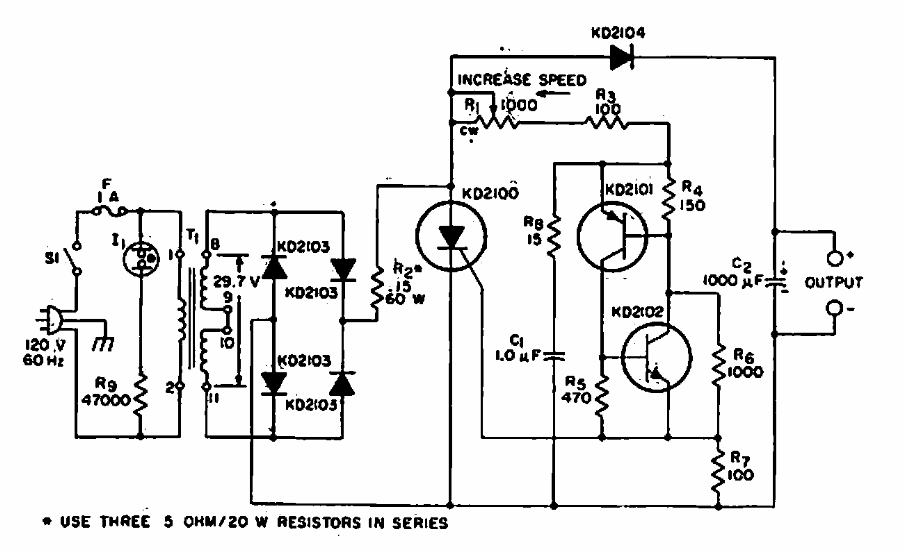

Control for miniature railway (CB7094E

Details
Written by: Newton C. Braga

)

     This circuit is from a 1967 RCA SCR manual. The circuit uses components from the era that can be replaced by modern equivalents. The transformer is 12 V x 1.2 A.
