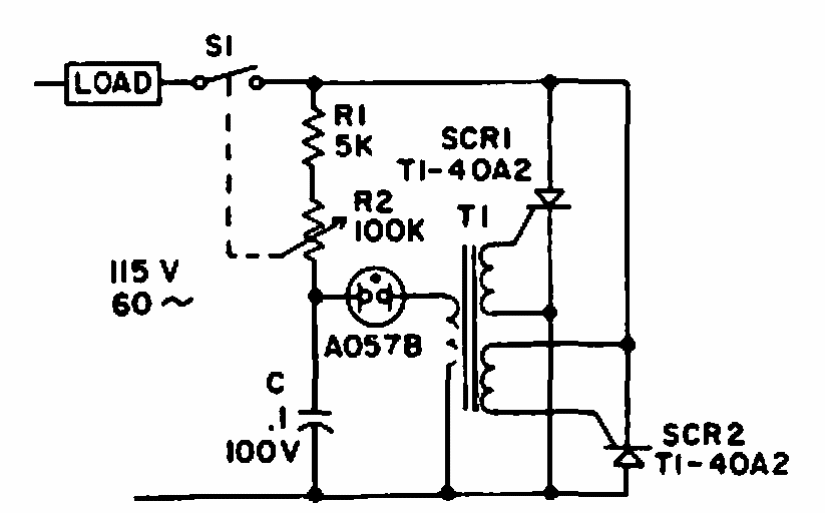

Dimmer without flicker (CB7218E)

This circuit was found in Signalite documentation from the 1960s. The circuit uses a pulse transformer whose characteristics have not been provided.

| Clique na imagem para ampliar |

Non-Inverting Gain 100 Amplifier 741 (CB16755E)
We found this common application of the 741 operational amplifier in a 1977 documentation. The...
Electronic Fuse (CB15845E)
This circuit, found in an old 1967 publication, cuts the current from a source when the current...
LM3914 with expanded scale (CB24652E)
This LED bar graph circuit was found in the October 1980 issue of Radio Electronics magazine. The...
