Pulsed Output Shadow Activated Alarm (CB6432E)

Details
Written by: Newton C. Braga

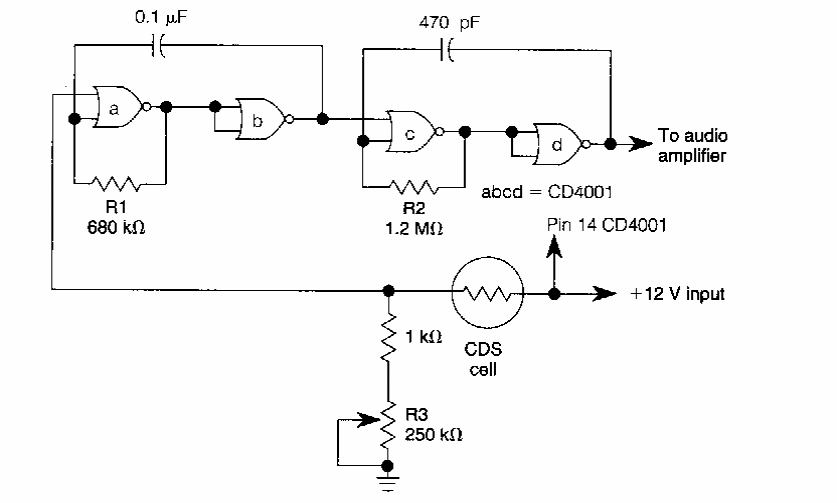

    In this circuit of an American documentation of the 90s, when the light is cut, we have the production of a pulsating tone. R3 determines the trigger sensitivity.




| Clique na imagem para ampliar |
