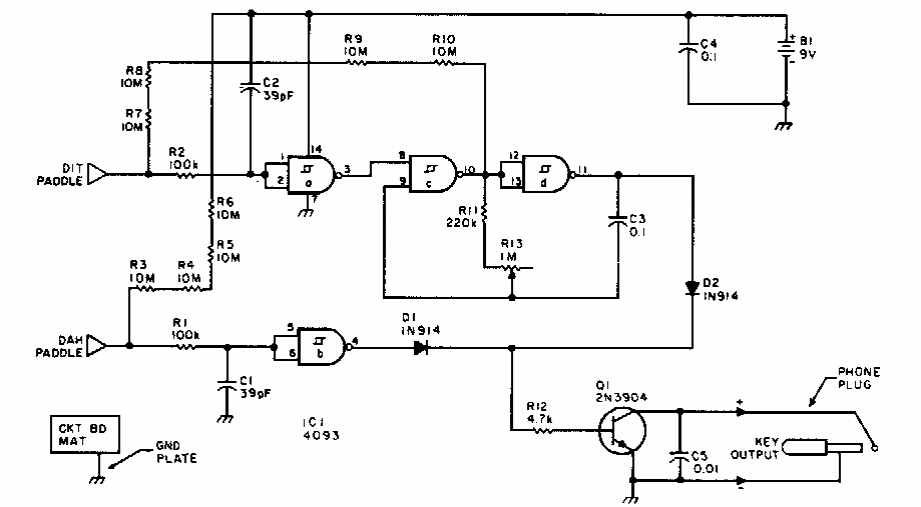

Electronic Handler (CB7312S)

This circuit was found in the magazine of radio amateurs 73 in a 90's edition. The components are current and the transistor is of general use.

| Clique na imagem para ampliar |
