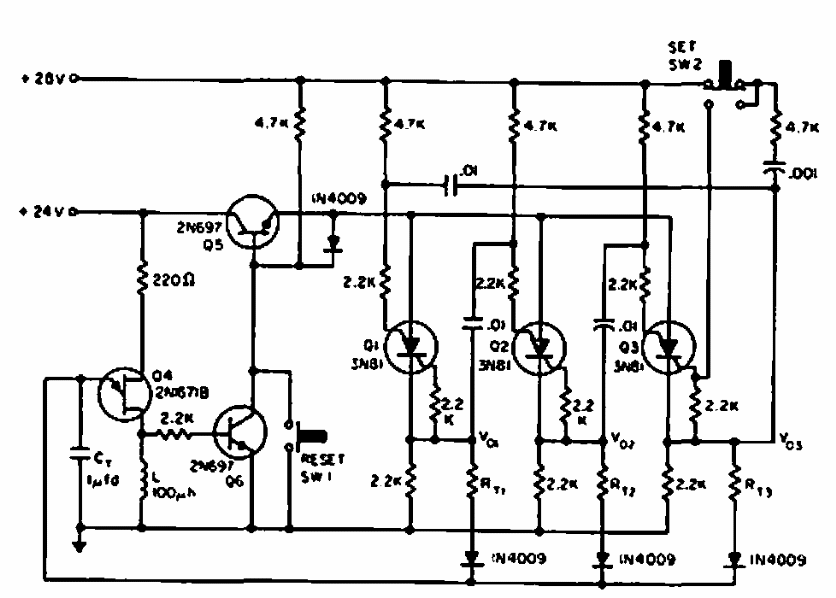

Ring Counter with Timing (CB6613E)

Details
Written by: Newton C. Braga



     This variable timing circuit was found in 1964 General Electric documentation. Circuit uses PUTs that are uncommon components today.
