Photo Cell Amplifier (CB6285E)

Details
Written by: Newton C. Braga

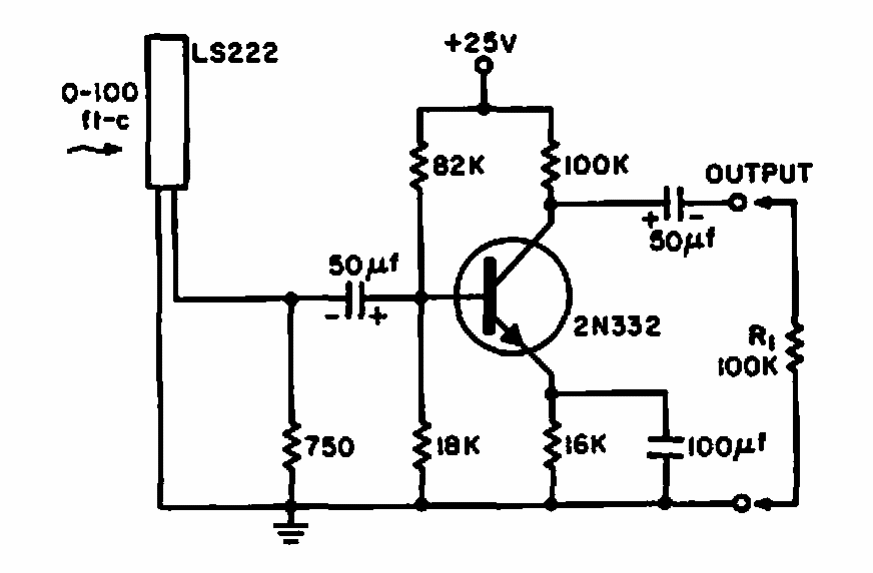

     Suggested by an American publication of 1964 this circuit is intended for the capture of signals from film tracks recorded by optical systems, common at the time.
