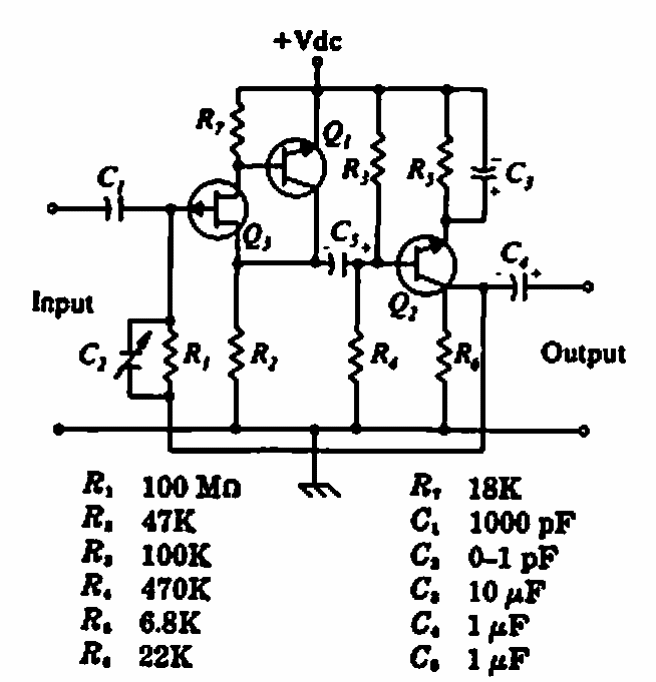

This amplifier for electrometer can work with currents of 0.1 pA in a band of 1 Hz. The circuit is from NASA in a publication of the 60s. Transistors are general purpose types.
| Clique na imagem para ampliar |
Electrometer (CB7371E)
- Details
- Written by: Newton C. Braga
