Instrumentation amplifier (CB6839E)

Details
Written by: Newton C. Braga

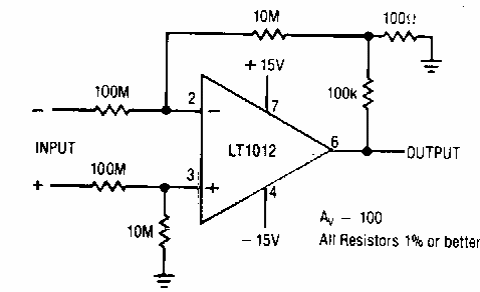

    Found in Linear Technology documentation from the 90s, this circuit has a 100 V common mode maximum voltage. The power supply must be symmetrical.
