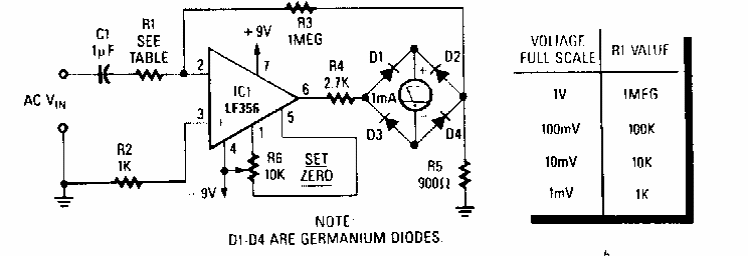

4-scale millivoltmeter (CB7389E)

Details
Written by: Newton C. Braga



     Found in Radio Electronics from the 90's, this circuit can be implemented with other operational amplifiers. The power supply is symmetrical.
