1 MHz Colpitts Clock (CB6469E)

Details
Written by: Newton C. Braga

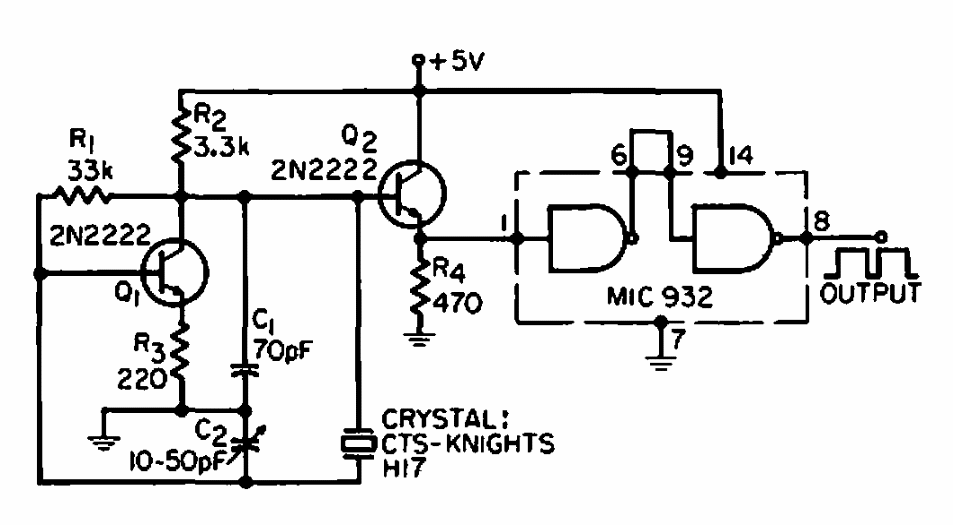

    This circuit with TTL compatible output was found in a 1968 US documentation. The circuit is powered by 5 V and the frequency can be changed by changing the crystal.




| Clique na imagem para ampliar |
