Transformerless inverter (CB7258E)

Details
Written by: Newton C. Braga

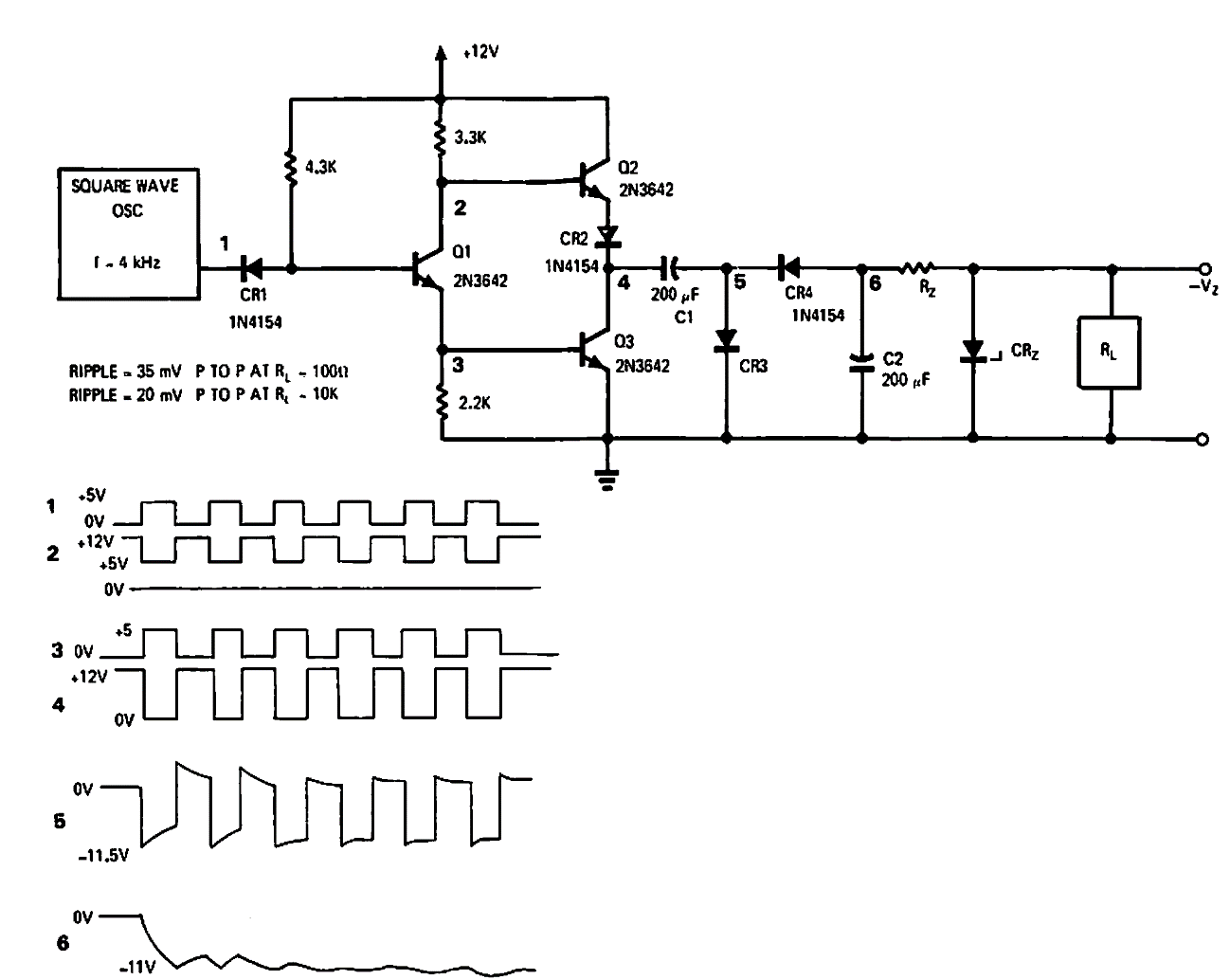

    This circuit provides an output voltage with approximately twice the input using two power transistors and a voltage doubler. The circuit is from a 1970 EDN.




| Clique na imagem para ampliar |
