Multiple cable test (CB7388E)

Details
Written by: Newton C. Braga

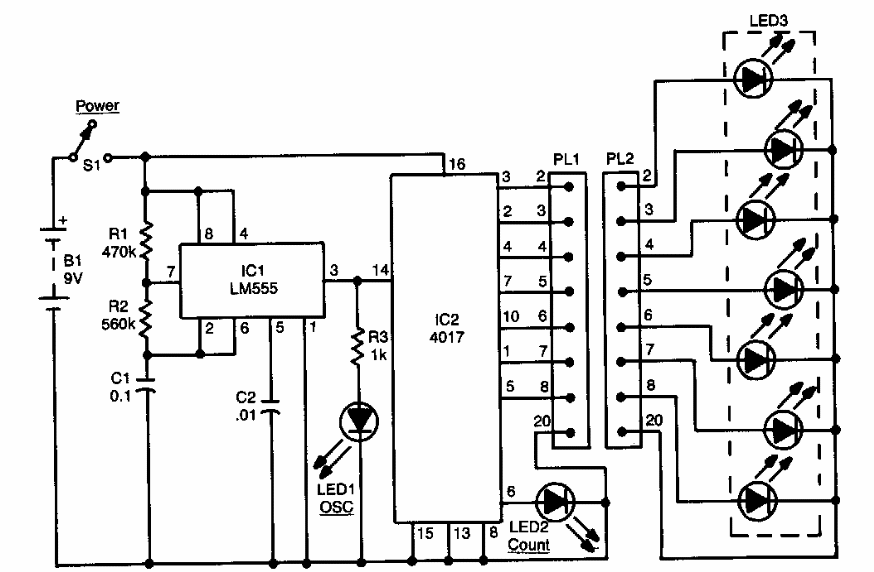

    This multiple cable test sequential circuit was found in Radio Electronics. The connector must be according to the type of cable to be tested.
