Electronic Potentiometer (CB6320E)

Details
Written by: Newton C. Braga

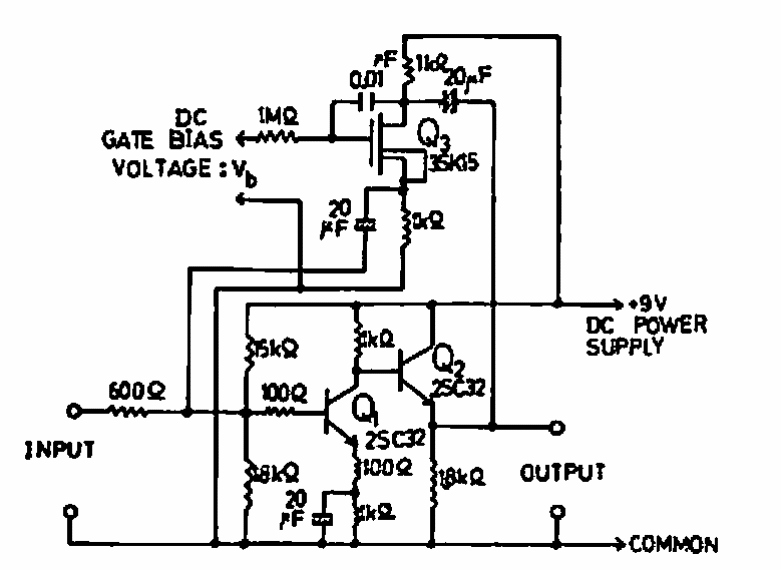

    This circuit was found in a 1970 IEEE publication. The circuit functions as a voltage controlled variable resistor and can be used with audio signals. Transistors admit current equivalents.
