Sequential Arrow (CB6377E)

Details
Written by: Newton C. Braga

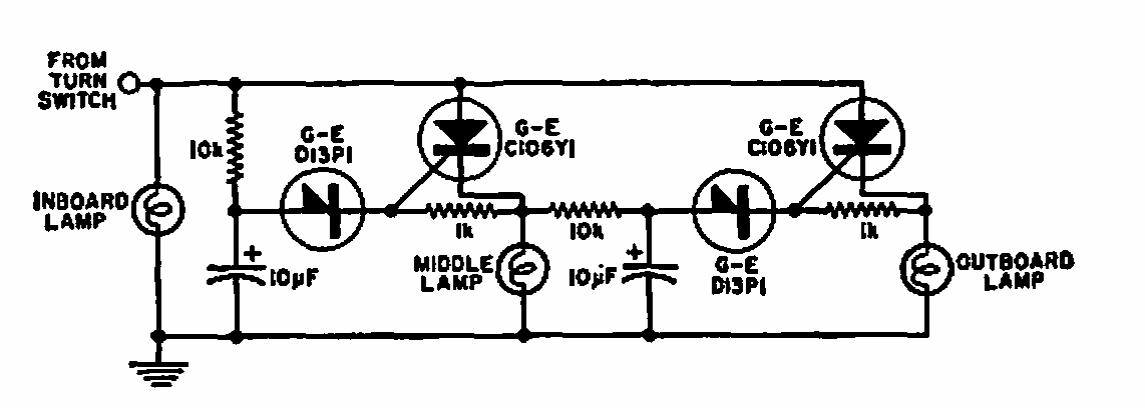

    We found this circuit in an Electronics World of 1967. The components are of the time and incandescent lamps are used.
