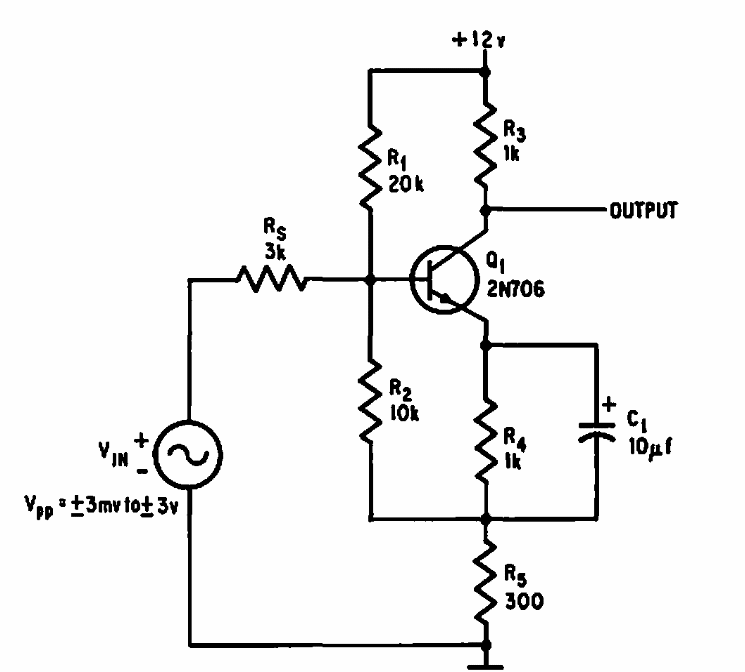

Amplifying Stage (CB6127E)

Details
Written by: Newton C. Braga



     This circuit is from a 1967 publication. The configuration holds true for modern transistors having a feedback across R2.




| Clique na imagem para ampliar |
