Fluorescent dimmer (CB7213E)

Details
Written by: Newton C. Braga

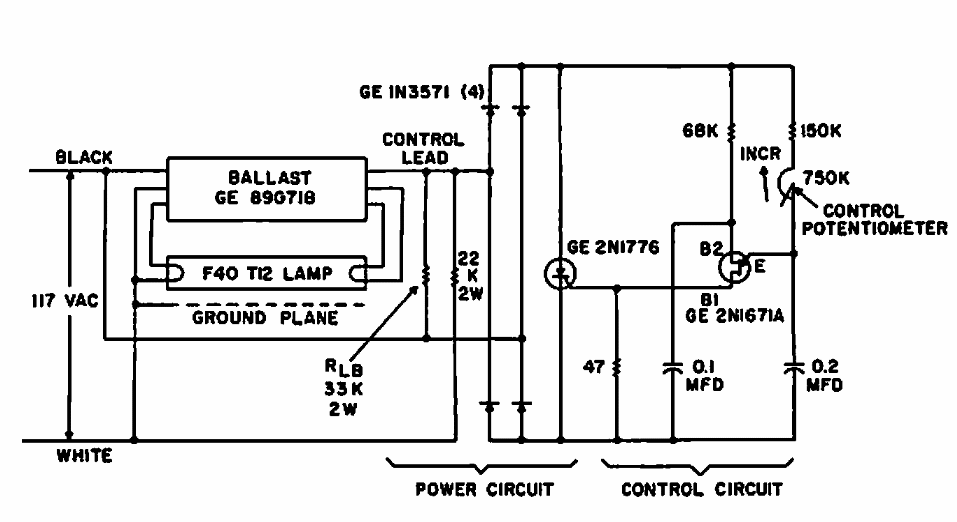

     We found this circuit in a 1962 publication by General Electric. The circuit applies to common fluorescents in the 117 V power grid but can be changed to other grid voltages.




| Clique na imagem para ampliar |
