Field intensity meter (CB7365E)

Details
Written by: Newton C. Braga

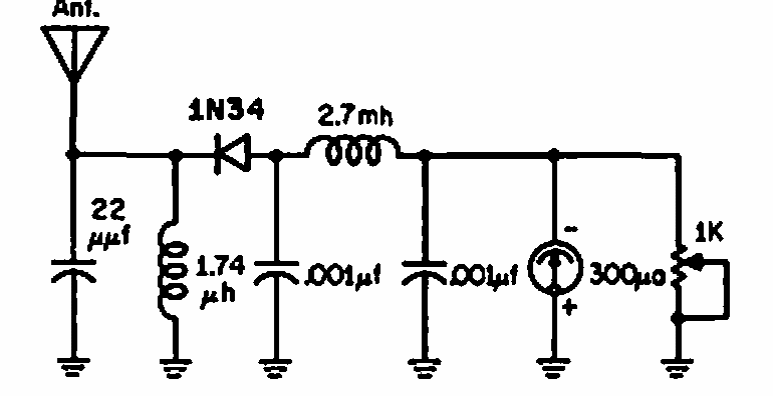

     Found in a 1966 publication, this circuit is a simple version of a field strength meter. The diode is a general-purpose germanium type.
