Damped filter for triac (CB6742E)

Details
Written by: Newton C. Braga

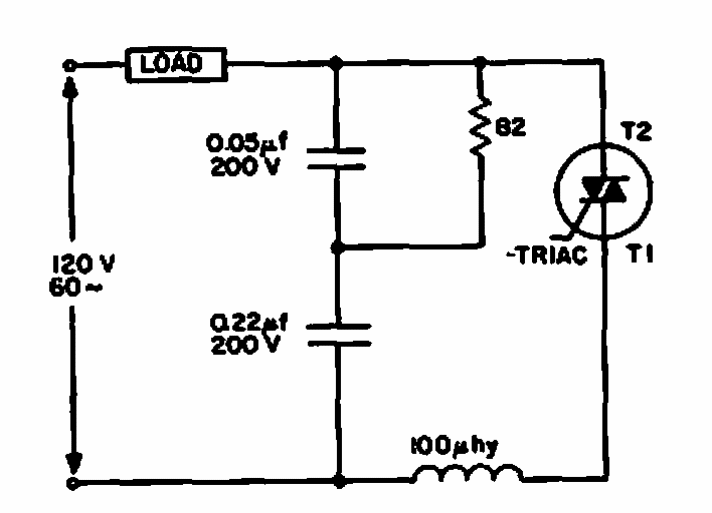

    This circuit is from a 1967 General Electric SCR manual. The capacitors are polyester and the inductor must have current according to the controlled load.




| Clique na imagem para ampliar |
