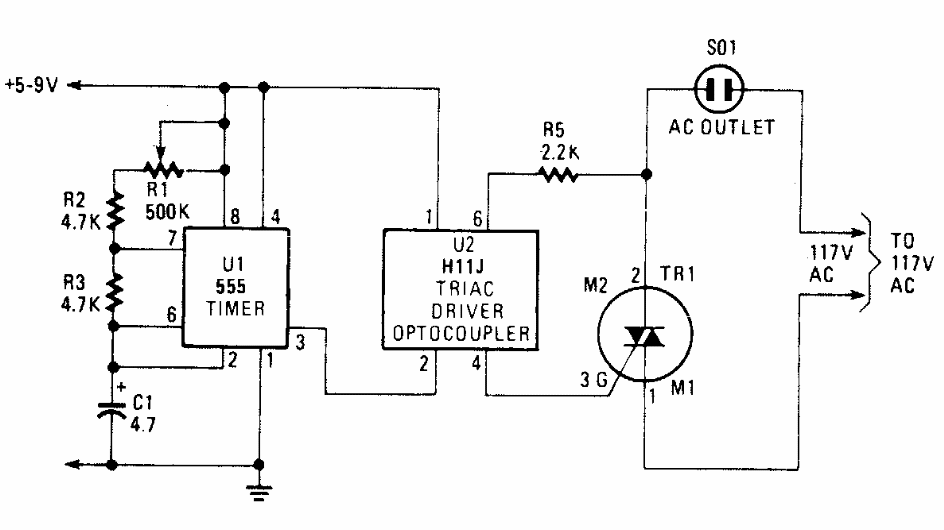

This flasher was found in an old Hands On, but uses common components. The optocoupler can be replaced with triac equivalent remembering the need for resistor in series with the emitting LED of this component.
