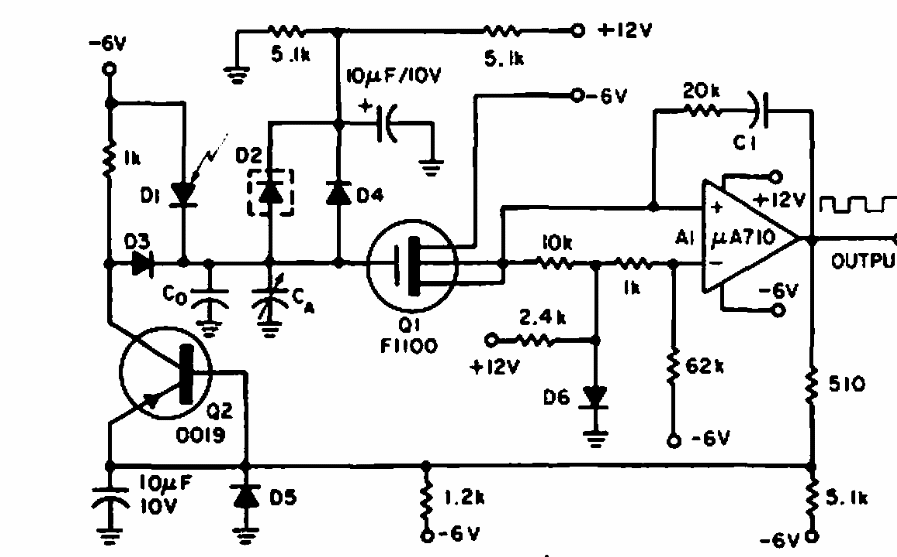

Light to Frequency Converter (CB6587E)

Details
Written by: Newton C. Braga



     This circuit was obtained from an Electronic Design of 1968. The circuit uses components of the time that can eventually be exchanged for current equivalents.




| Clique na imagem para ampliar |
