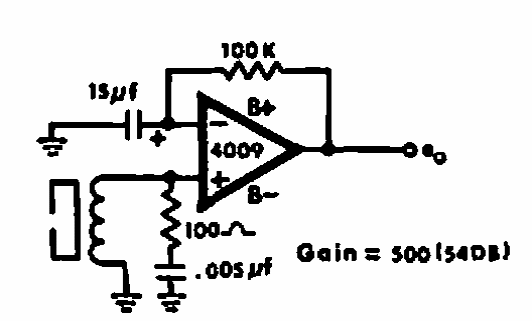

Tape equalizer (CB7308E)

Details
Written by: Newton C. Braga



     This circuit was found in an American documentation from 1968. The configuration can be adapted to operate with modern operational. The gain is 500 and the power source must be symmetrical.
