Darlington 10 Hz Passband Stage (CB6278E)

Details: Written by: Newton C. Braga

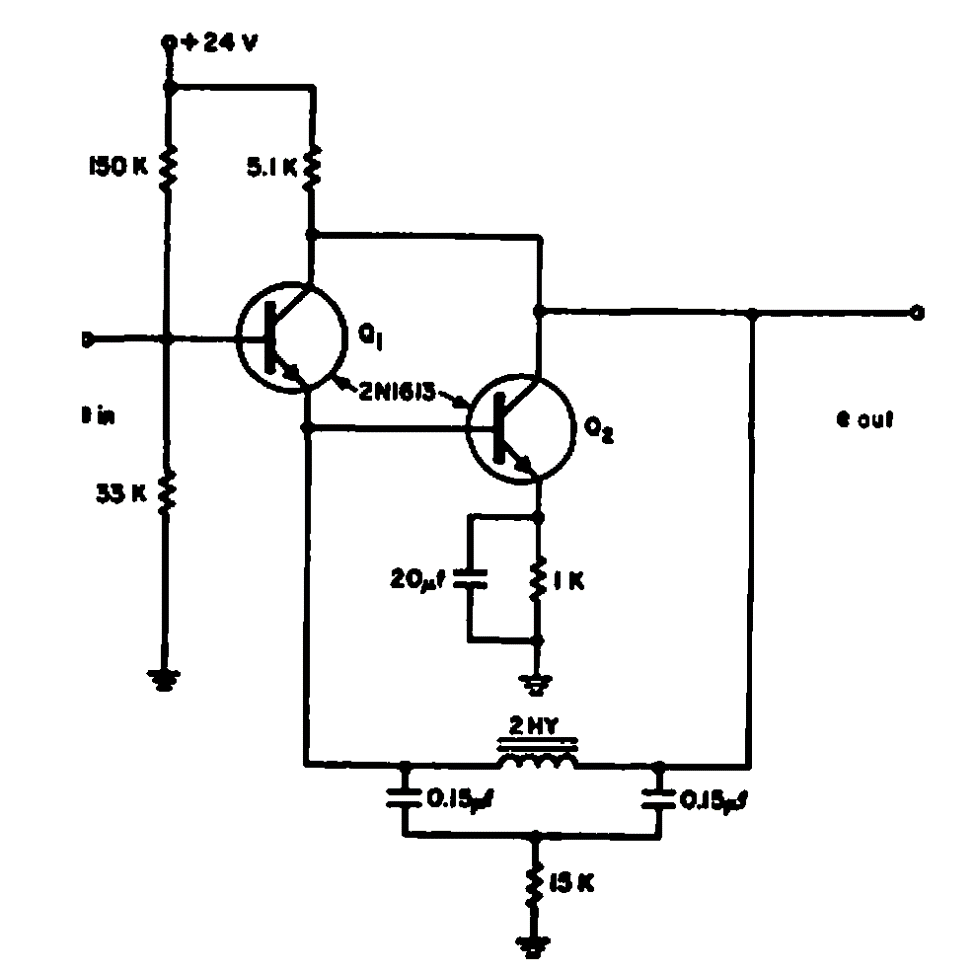

This circuit, found in a 1964 US documentation, consists of a selective amplifier that lets only 10 Hz pass around a 400 Hz center frequency with the indicated components.
