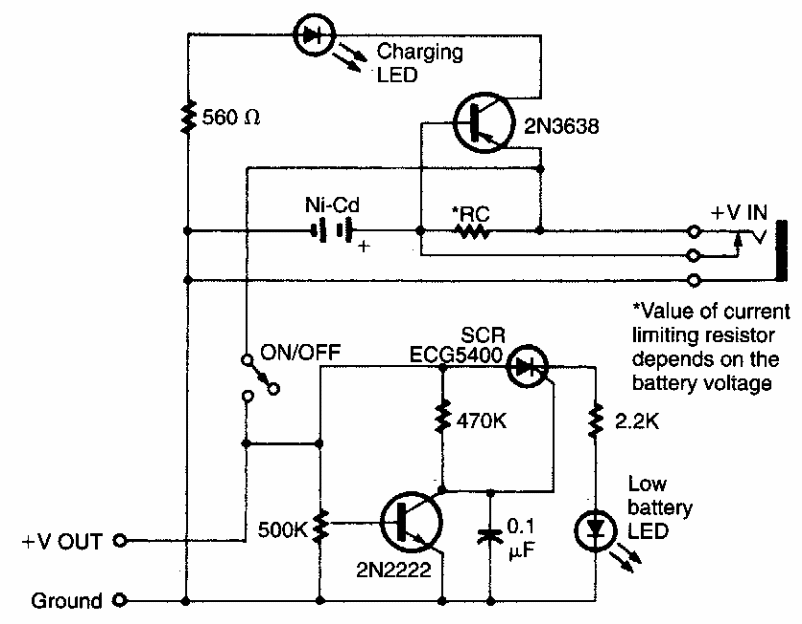

Intelligent battery charger (CB7130E)

Suggested by Radio Electronics from the 90s, this circuit is suitable for NiCAd batteries with a low battery indicator and a charge indicator.

| Clique na imagem para ampliar |

Undervoltage and overvoltage indicator (CB5073E)
This circuit that uses only transistors indicates when the voltage in the circuit has the voltage...
Relaxation oscillator Using Bipolar Transistors (CB884E)
The frequency in this circuit is adjusted by P1 and given by C1. Short pulses, as the ones...
Darlington Amplifier from 10 to 50 W (CB396)
The circuit shown bellow is na áudio amplifier using Darlington transistor in a complementary...
