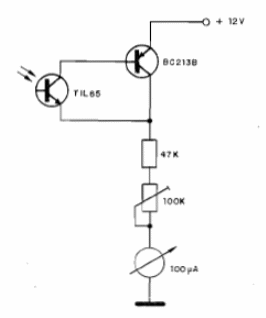

This circuit is suggested by Texas Instruments in his Optoelectronics Sourcebook. Any photo transistor can be used and the transistor can also be a BC558. The meter is an analog type with end of scale of 100 µA.
![](/images/sampledata/cb/cir0814_0001.gif)
This circuit is suggested by Texas Instruments in his Optoelectronics Sourcebook. Any photo transistor can be used and the transistor can also be a BC558. The meter is an analog type with end of scale of 100 µA.
