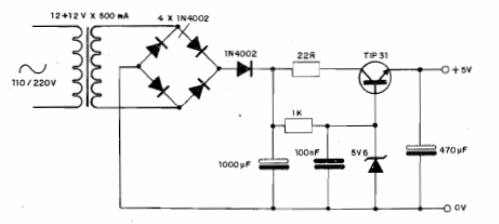

This circuit is indicated to power TTL circuits with current drains up to 500 mA. The transistor must be mounted on a heatsink. If a 1 A transformer is used the output current can rise to up 1 A without the need of a change in the transistor.
