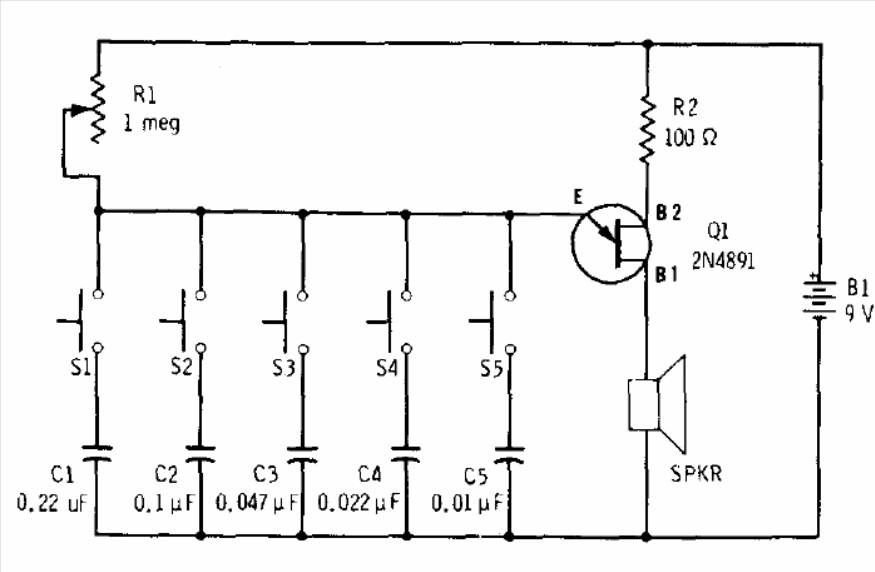

This traditional configuration found in a Radio Shack document can use 2N2646. More keys can be added, and the power can be supplied with voltages from 9 to 15 V.
| Clique na imagem para ampliar |
Unijunction Organ (CB13520E)
- Details
- Written by: Newton C. Braga
