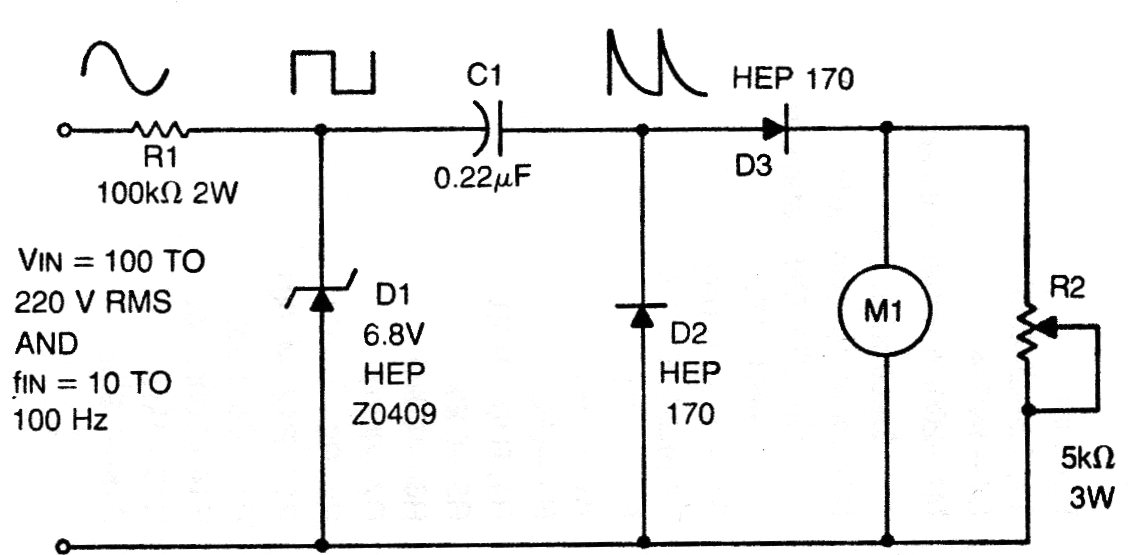

This circuit was obtained in an American publication from the 70s. The instrument is 100 uA, and the adjustment made in R2, which can be 47k. The diodes are 1N4002 or 1N4004 and R1 is wire. The circuit measures frequencies from 10 to 100 Hz.
