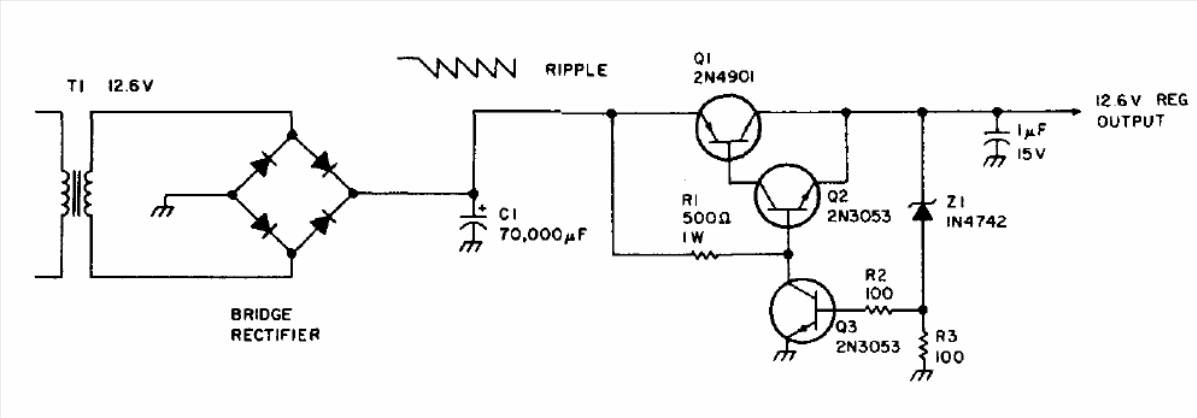

This circuit is from an old American publication from 1977. Transistor Q1 can be a TIP42 and Q2 a BD135. Q3 can be a BC548, and rectifier diodes 1N5404. The Q1 transistor must be mounted on an excellent heat radiator.
