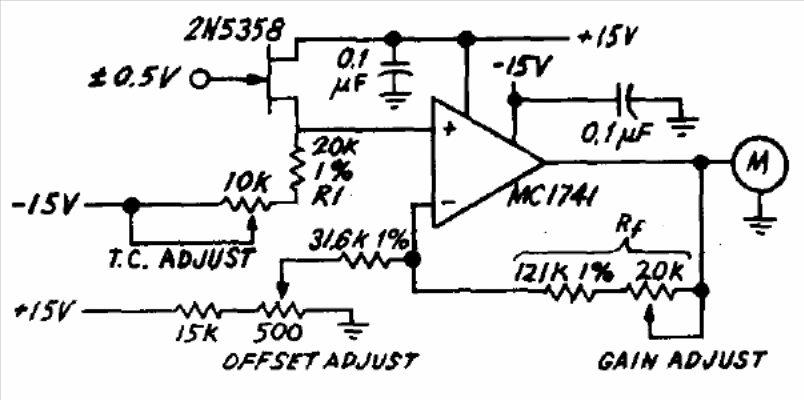

This circuit is from a 1973 documentation. In it we have the way of using a FET as an input of 100M ohms acting as a gain control. The circuit is suitable for sensitive applications such as pH sensors and others with very high impedance.
