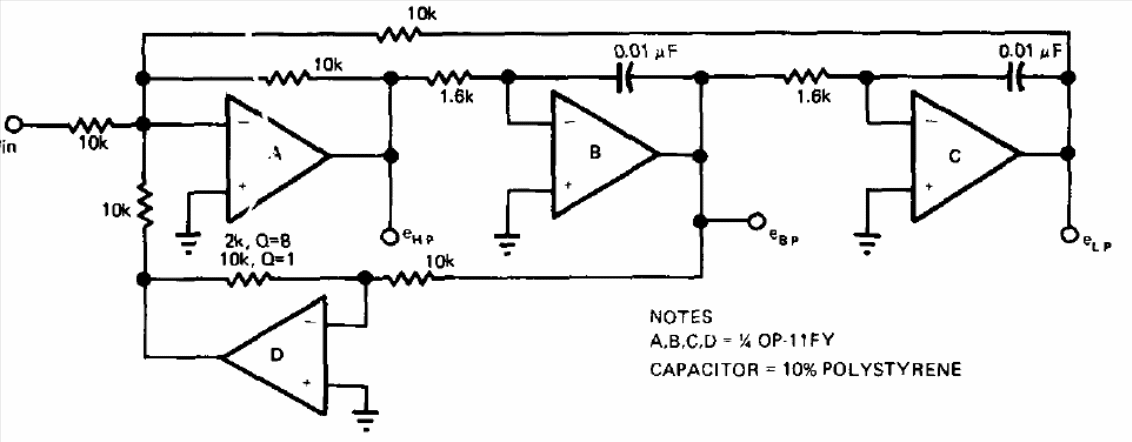

This second-order filter was found in a 1978 publication and can use common operational amplifiers like the 741. The source must be symmetrical, and the capacitors can be changed for operation at other frequencies.
| Clique na imagem para ampliar |
10 kHz Variable Q filter (CB13585E)
- Details
- Written by: Newton C. Braga
