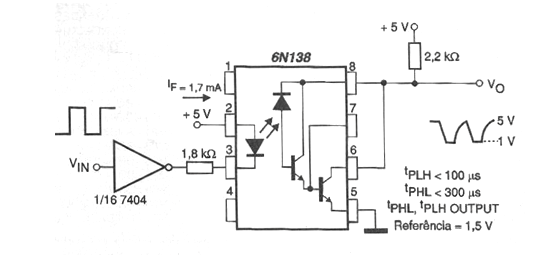

Here we have in the figure the configuration of the circuit as a conventional Darlington. In this configuration there is no need for a polarization circuit. The data transfer speed is 2 kB / s and the output signal voltage varies between 1 and 5 V.
Darlington Conventional Optocoupler (CB13063E)
- Details
- Written by: Newton C. Braga
