Instrumentation Amplifier (CB13412E)
- Details
- Written by: Newton C. Braga

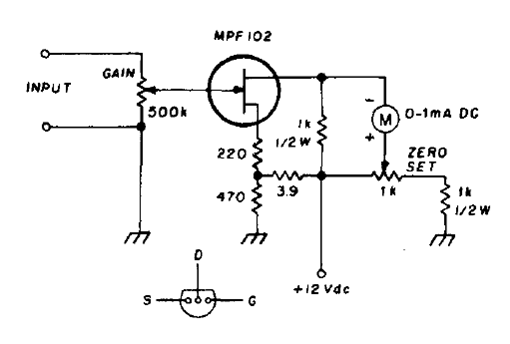

This circuit has a very high input resistance to excite a 0-1 mA indicator instrument. The FET admits equivalent as the BF245 and the gain pot can be 470k.
