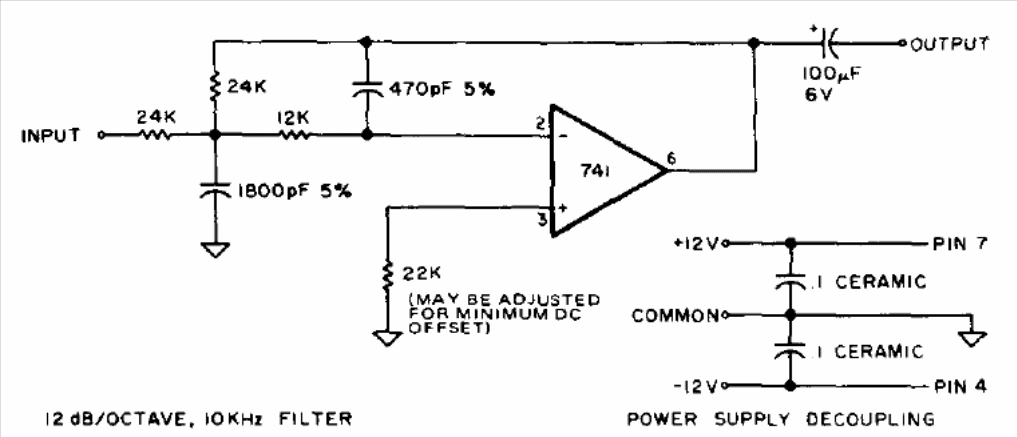

This 12 dB per octave filter was found in a 1977 digital audio publication. The circuit requires a symmetrical source, as shown next to the diagram and the precision in the cutoff frequency depends on the components used.
