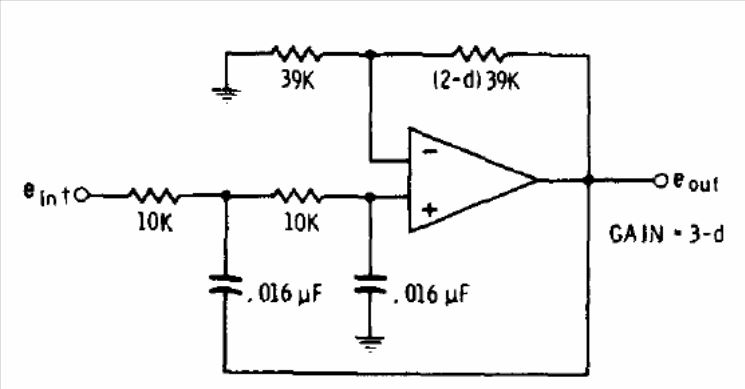

This filter was found in a 1975 American technical publication. The filter can be of any type and must use a symmetrical font. The component values are for 1 kHz but can be changed for other frequencies.
| Clique na imagem para ampliar |
Second Order 1 kHz Low Pass Filter (CB13444E)
- Details
- Written by: Newton C. Braga
