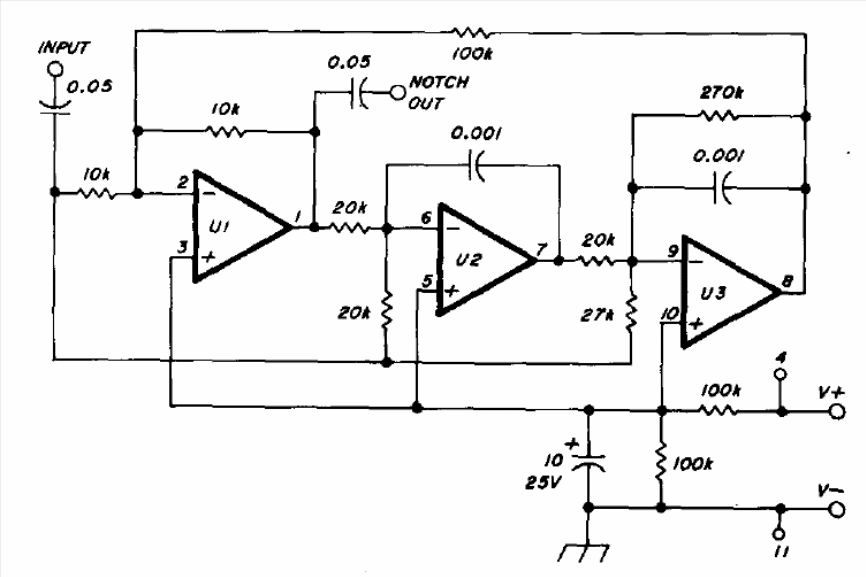

We found this circuit in a publication on operational amplifiers from 1978. The circuit is made with LM324 amplifiers and the source does not need to be symmetrical, and can have voltages between 5 and 25 V. The components can be changed for operation at other frequencies.
| Clique na imagem para ampliar |
