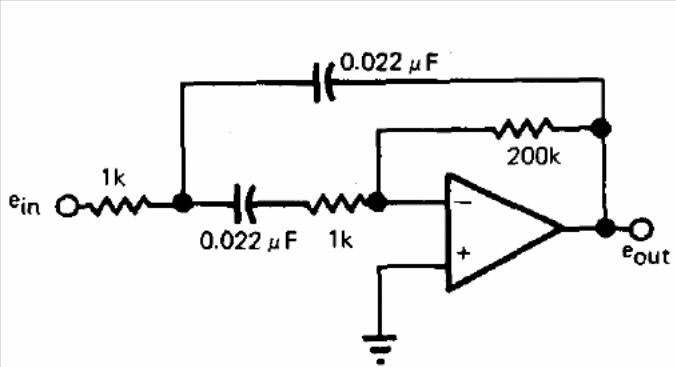

This filter is from 1978 documentation. The source must be symmetrical and the gain in the center of the range is 46 dB or 200 times. The Q factor is 4.7. The components can be changed for operation on other frequencies.
