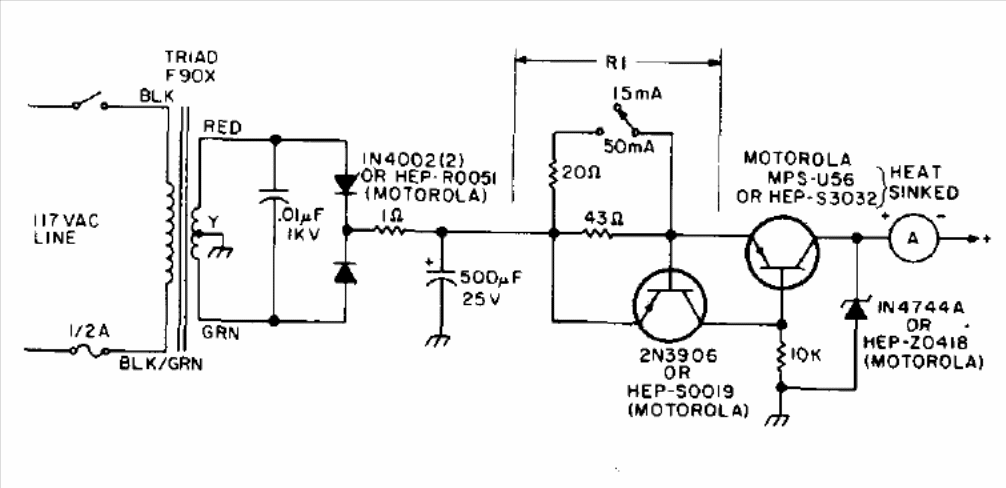

This circuit is intended for charging 12 V Nicad batteries, which corresponds to 10 common batteries in series. The transformer is 12 V with at least 500 mA and the power transistor can be the TIP42. This component must be equipped with a heat radiator. The other transistor can be a BD136.
