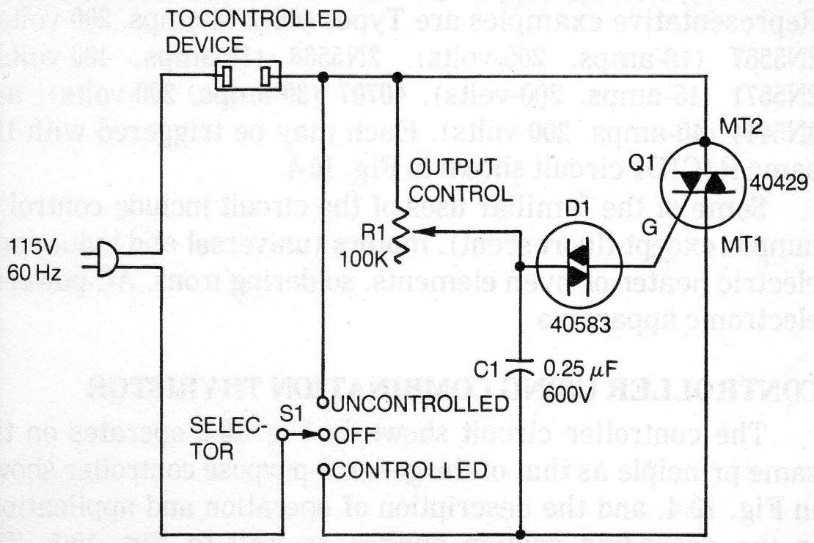

This circuit is as shown in a 1976 technical documentation. It can currently be assembled with any diac and the triac can be any of the TIC series, such as the TIC226 according to the load. The circuit is for 110 V, but can be changed to 220 V. The triac must have a heat radiator.
