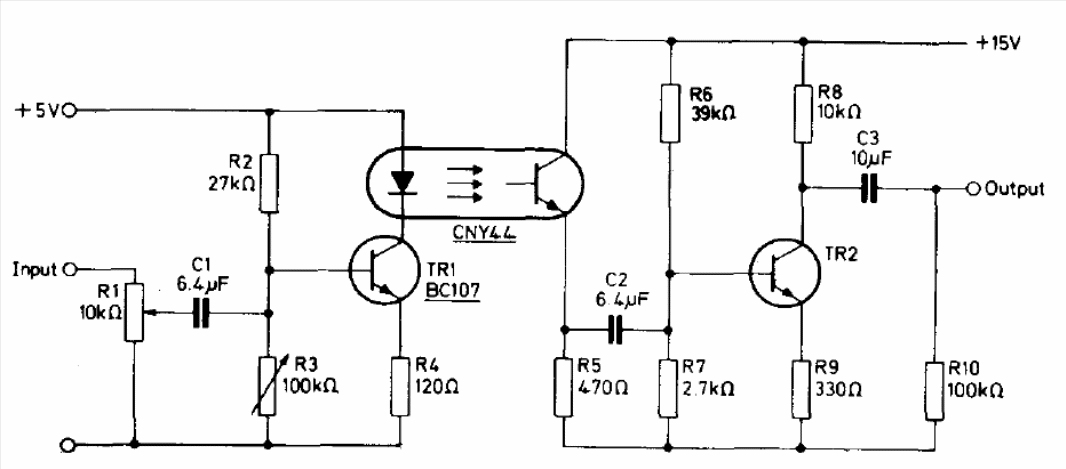

This circuit serves to isolate analog signals, for example, audio signals in a secure link application. The circuit is from a 1974 Mullard manual. The transistors can be the BC547 and the trimpot adjusts the operating point to avoid distortion.
