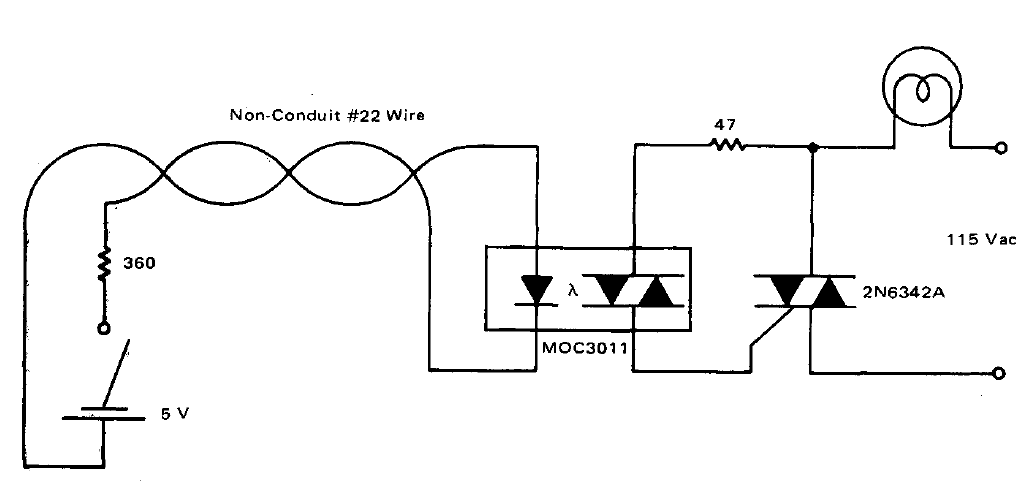

This circuit was obtained in a Motorola manual from 1978. We can use any triac and the coupler with trigger can be others of the same series, depending on the voltage. The controlled power depends on the triac. In the control we can use other voltages, just change the resistor of 360 ohms. For a 9 V battery, a 680 ohms resistor can be used.
