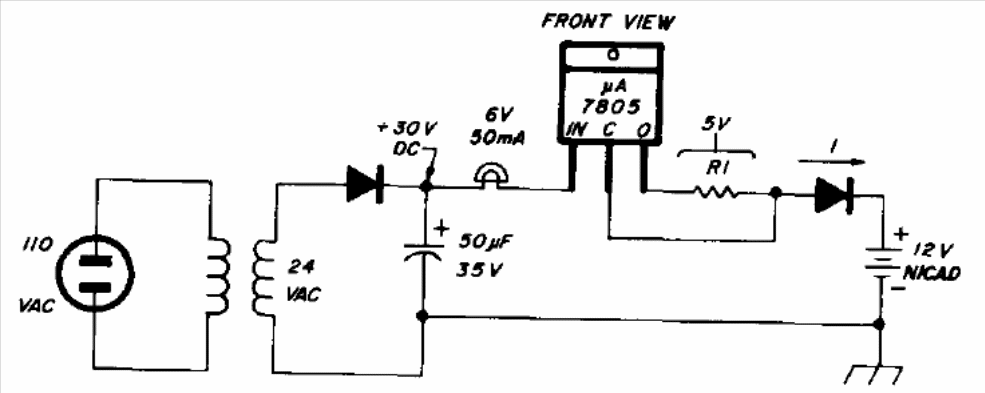

The value of R1 given by I = R1 / 5 determines the load current of this circuit. The maximum current is 1 A, and the CI must have a heat radiator. The transformer current is 1 A. The diodes can be 1N4002 or equivalent.
| Clique na imagem para ampliar |
