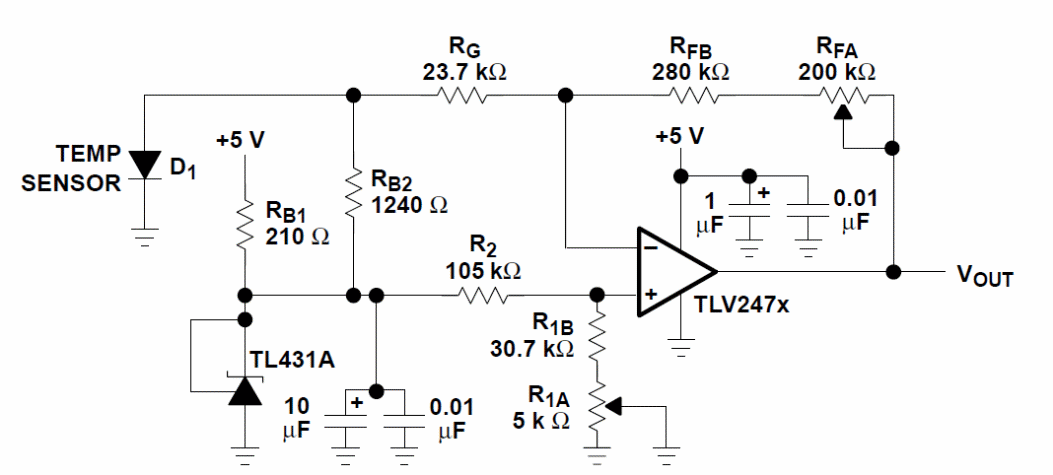

We found this circuit in a technical documentation from Texas Instruments. It interfaces a diode-type sensor with an A / D converter input. The circuit has the gain adjusted according to the sensor characteristics. The TL431 is a Texas voltage reference.
